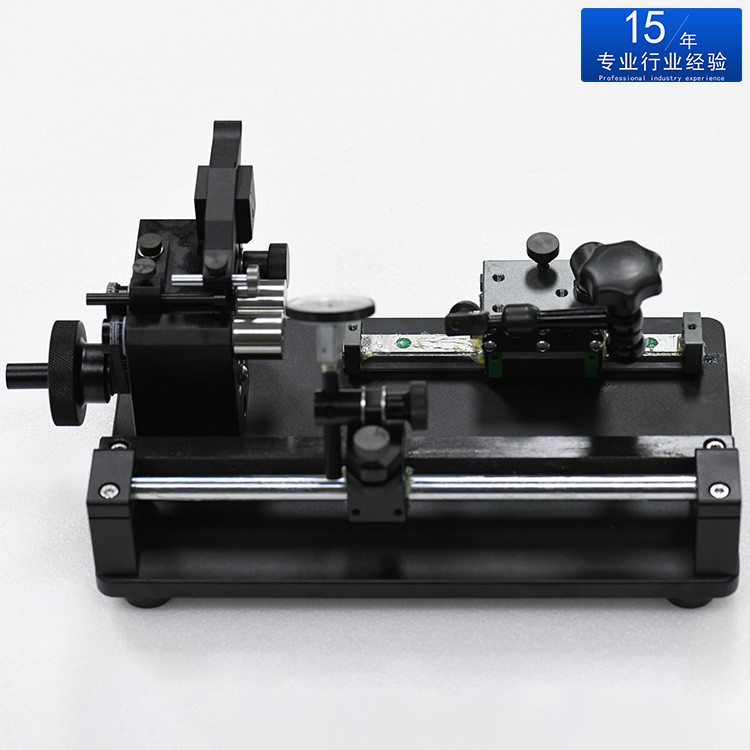

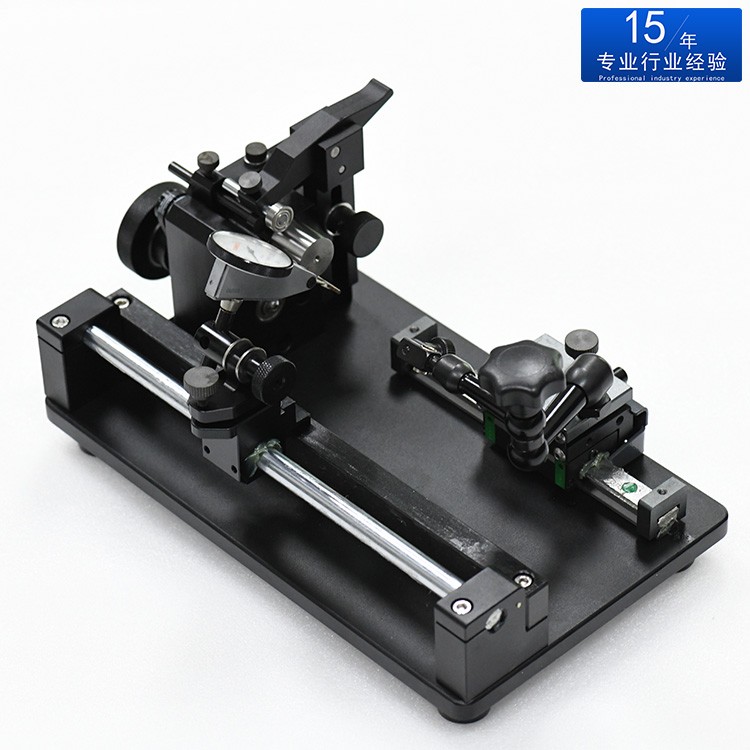

線軌同心度測量儀
更換測量截面,臺階內(nèi)孔，外孔,直線度,圓度,跳動測量,方便裝取工件軸，測量表架移動進(jìn)出，探測表針移出內(nèi)孔，表針重復(fù)定位精度高，更加適合于人工批量檢測，時間短，測量速度快。
Rail concentricity measuring instrument
Change the measuring section and steps.
Inner hole, outer hole, straightness, roundness, run out measurement, easy to load the work piece axis, measuring table frame moving in and out, probe needle moving out of the inner hole, the needle repetitive positioning accuracy is high, more suitable for manual batch testing, short time, fast measurement.
型號 Type | 測量范圍mm Measuring Range mm | ||
適用直徑 Applicable diameter | 適用長度 Applicable length | ≤精度 Accuracy≤ | |
CON1-152 | 3-35 | 152 | 0.002 |
CON4-152 | 1.5-35 | 152 | 0.002 |
CON2-152 | 10-60 | 152 | 0.003 |
CON3-152 | 20-102 | 152 | 0.003 |
