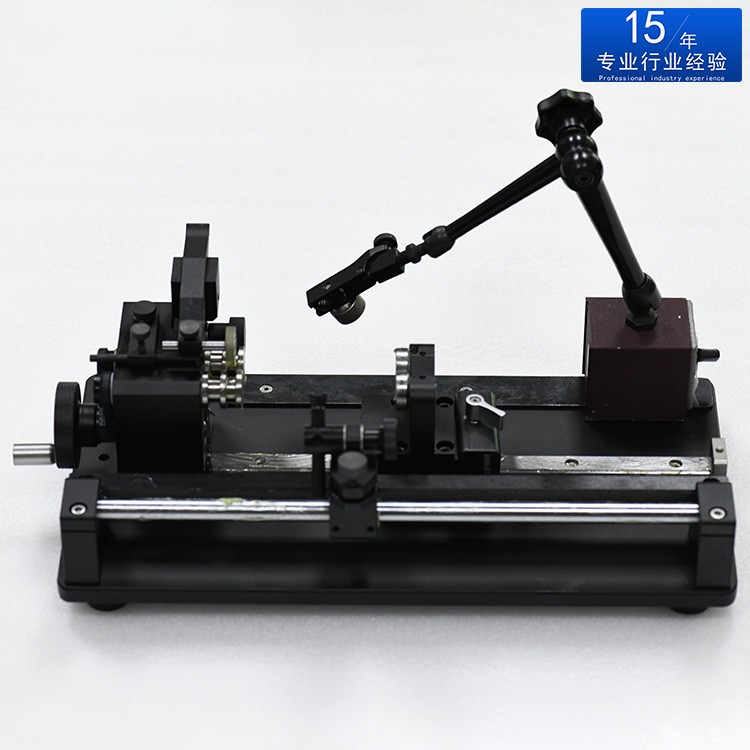

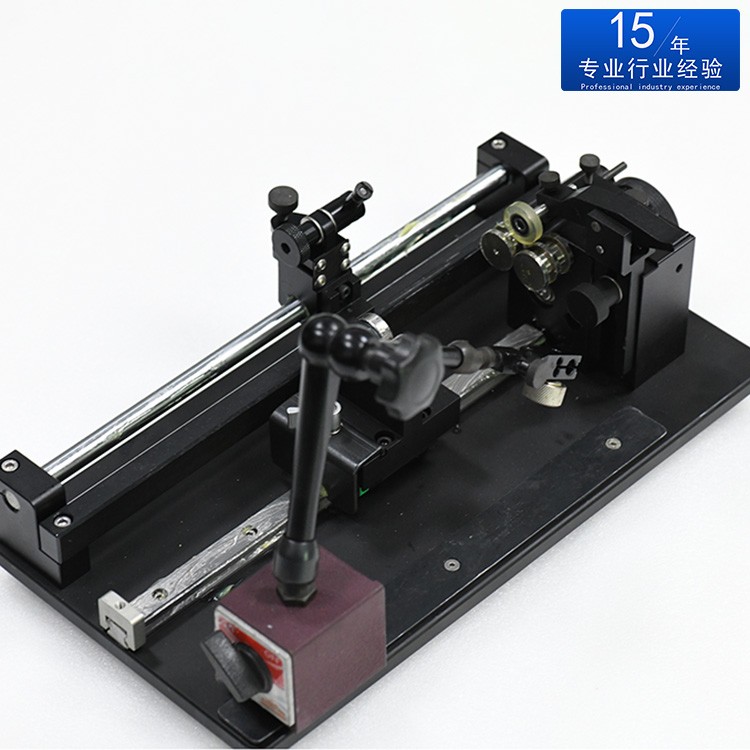

單直線線軌同心度測量儀
柔性表架安裝測量表，方便不同
位置芯軸, 臺階,內孔，外孔,直線度,圓度,跳動測量,任意萬向擺動
用于抽檢，流水線,生產線使用；
Single Linear Gaug
Concentricity Measuring Instrument
Flexible rack is convenient for installation of measuring meters.
Position mandrel, step, inner hole, outer hole, straightness, roundness, jump measurement, arbitrary
型號 Type | 測量范圍mm Measuring Range mm | ||
適用直徑 Applicable diameter
| 適用長度 Applicable length | ≤精度 ≤Accuracy | |

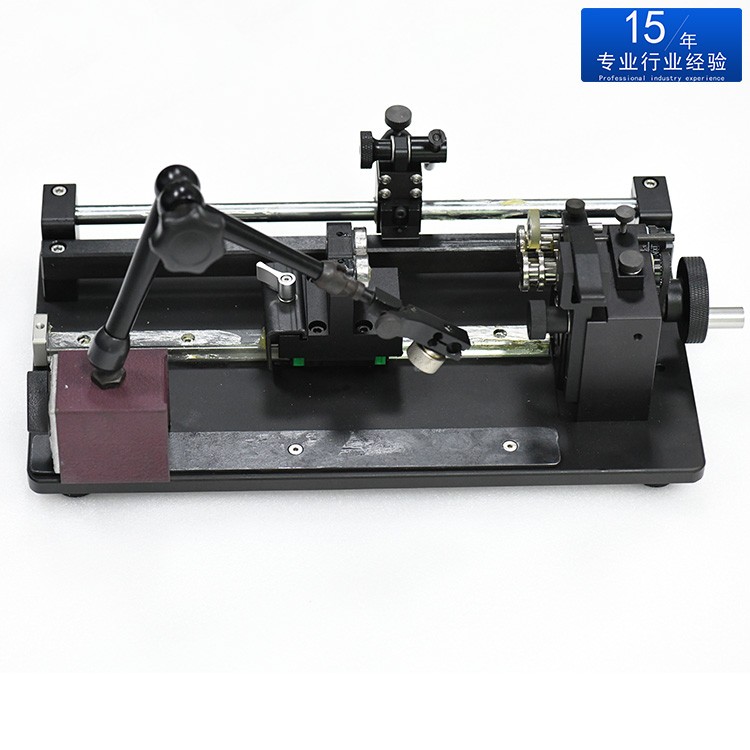

CON1-210 | 3-35 | 210 | 0.002 |
CON4-210 | 1.5-35 | 210 | 0.002 |
CON2-210 | 10-60 | 210 | 0.003 |
CON3-210 | 20-102 | 210 | 0.003 |
- 類型 :
